Build Specs:

• DT350 hubs
• 32 spoke
• 3 cross lacing
• double butted spokes

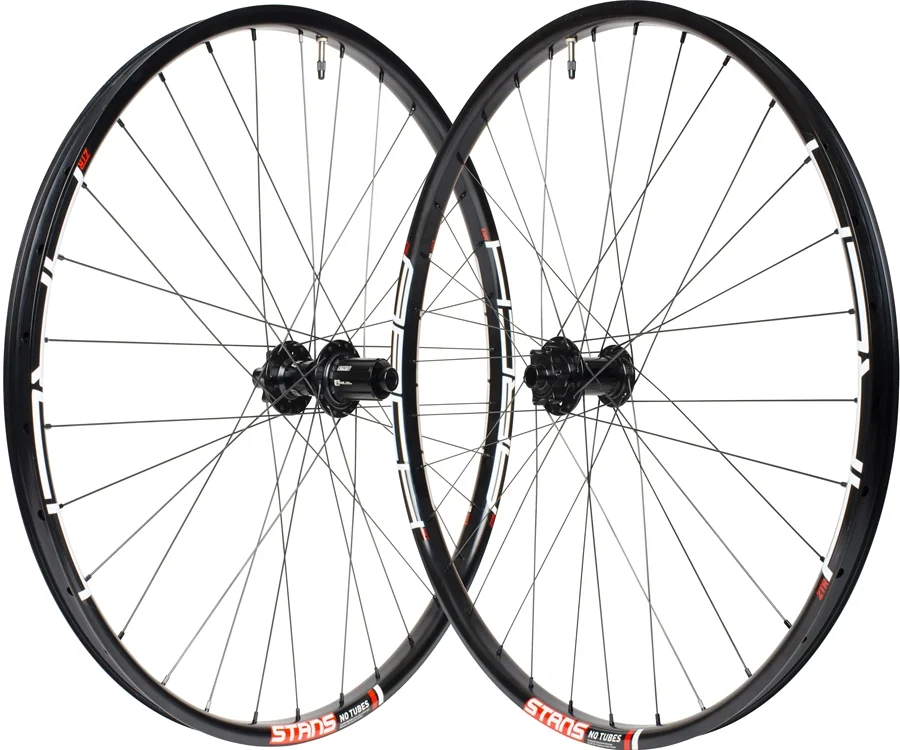

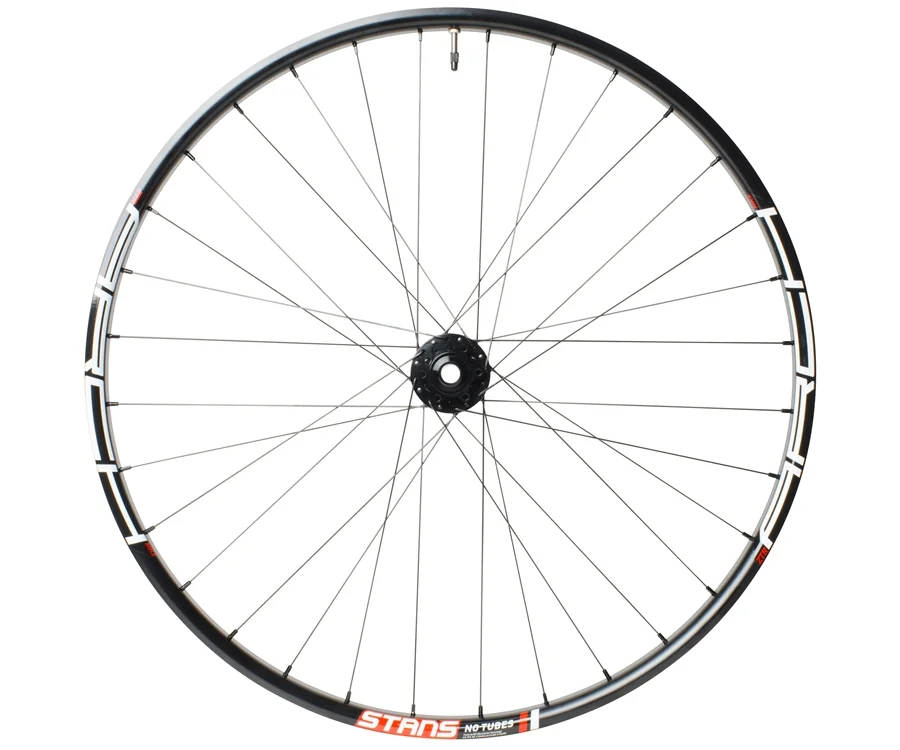

Designed with input from our Enduro World Series teams, the new Arch MK3 is ready to own every trail. WideRight optimized for maximum stability with 2.25" to 2.5" tires, we expanded the internal width out to 26mm while keeping the rim incredibly light. The 27.5" Arch MK3 weighs only 425g. A new proprietary alloy and stronger, low-profile rim shape means the new Arch MK3 is built to last. Featuring Bead Socket Technology, the new Arch MK3 also offers the unmatched traction, ontrol, and reliability only found on genuine Stan’s NoTubes rims.

Rim Internal Width: 26.0mm
Rim External Width: 29.3mm
Rim Depth: 16.0mm
Brakes: Disc only
Rim Weight: 406g (26") / 425g(27.5") / 453g (29")
ERD: 542mm (26") / 567mm (27.5") / 605mm (29")
ETRTO: 559x26.0 (26") / 584x26.0 (27.5") / 622x26.0 (29")
Color: Black
ISO: 26"x29.3mm / 27.5"x29.3mm / 29"x29.3mm
Tape: 27mm
Valve: 35mm Presta
Spoke Tension: 125kgf (1225N)
Max Rider Weight: 230lbs (104 kilo)
Max Pressure with 2.25" Tire: 39psi
Max Pressure with 2.5" Tire: 36psi
